43004 Amplifier

Soul of Sound 43004 Amplifier

Four channels. 300 watts. 4 ohms.

Developed in 2021 alongside my line-array loudspeaker system, the 43004 was created to provide twelve powerful amplifier channels without turning the electronics into a wall of equipment.

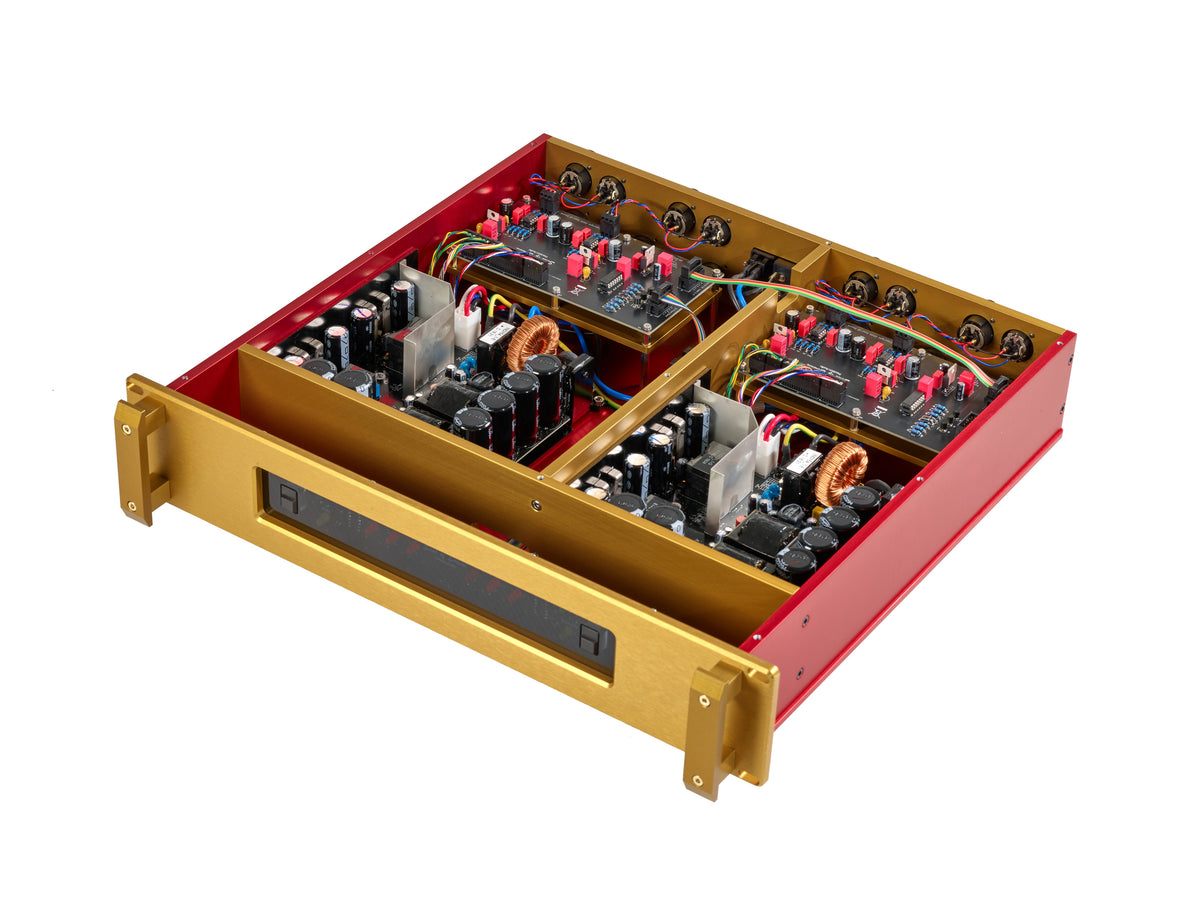

Two stereo Class-D modules provide four 300-watt channels in just two rack units. But the modules were only the starting point.

Soul of Sound 43004 Power Amplifier

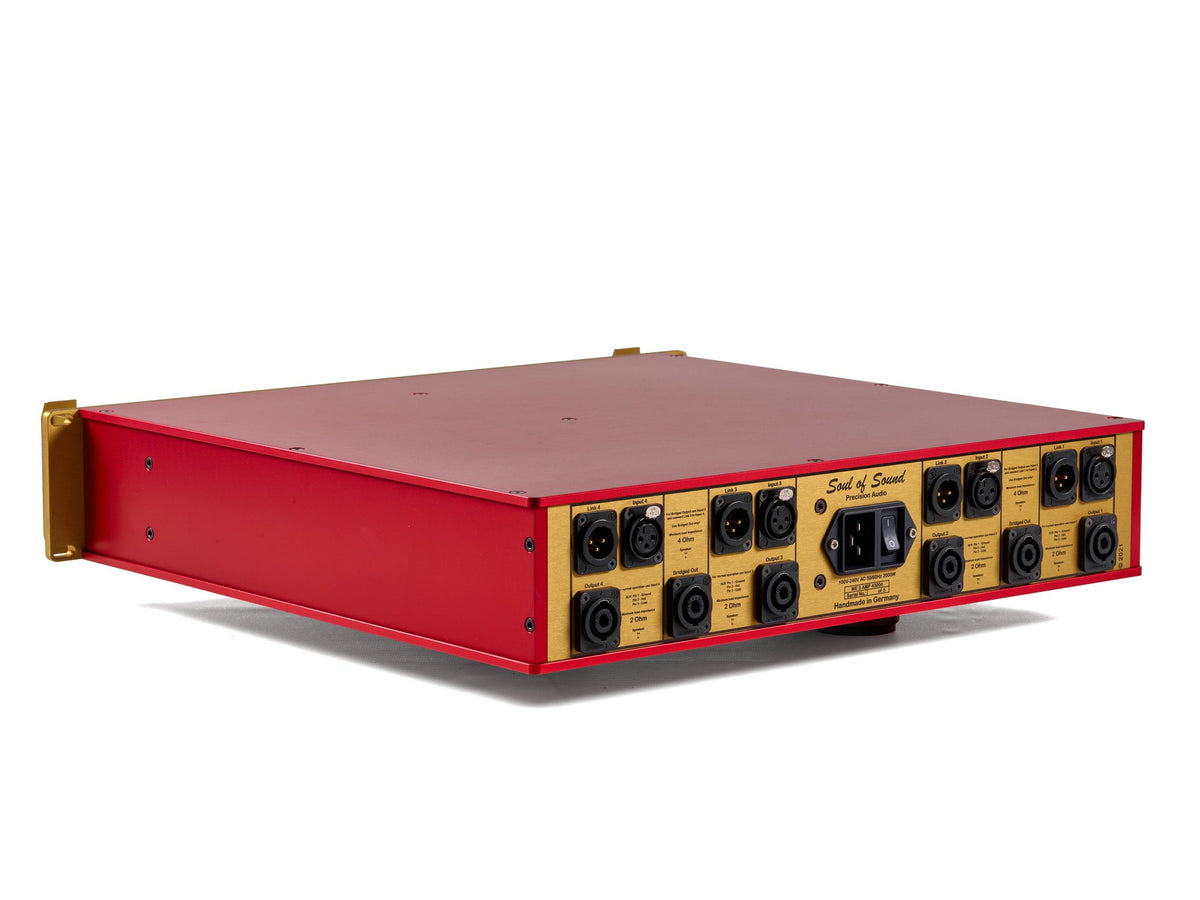

Four inputs. Four outputs. Two bridged outputs. Behind them, a dedicated analogue front end provides the Anaview modules with a controlled interface, making the amplifier less dependent on the source driving it.

Soul of Sound 43004 Power Amplifier

Power and mute are handled by dedicated logic, including Standby / Operate, Mute / Listen, clipping and over-temperature indication. The intention was never simply to put two stereo modules into a box, but to turn them into a complete amplifier.

Soul of Sound 43004 Power Amplifier

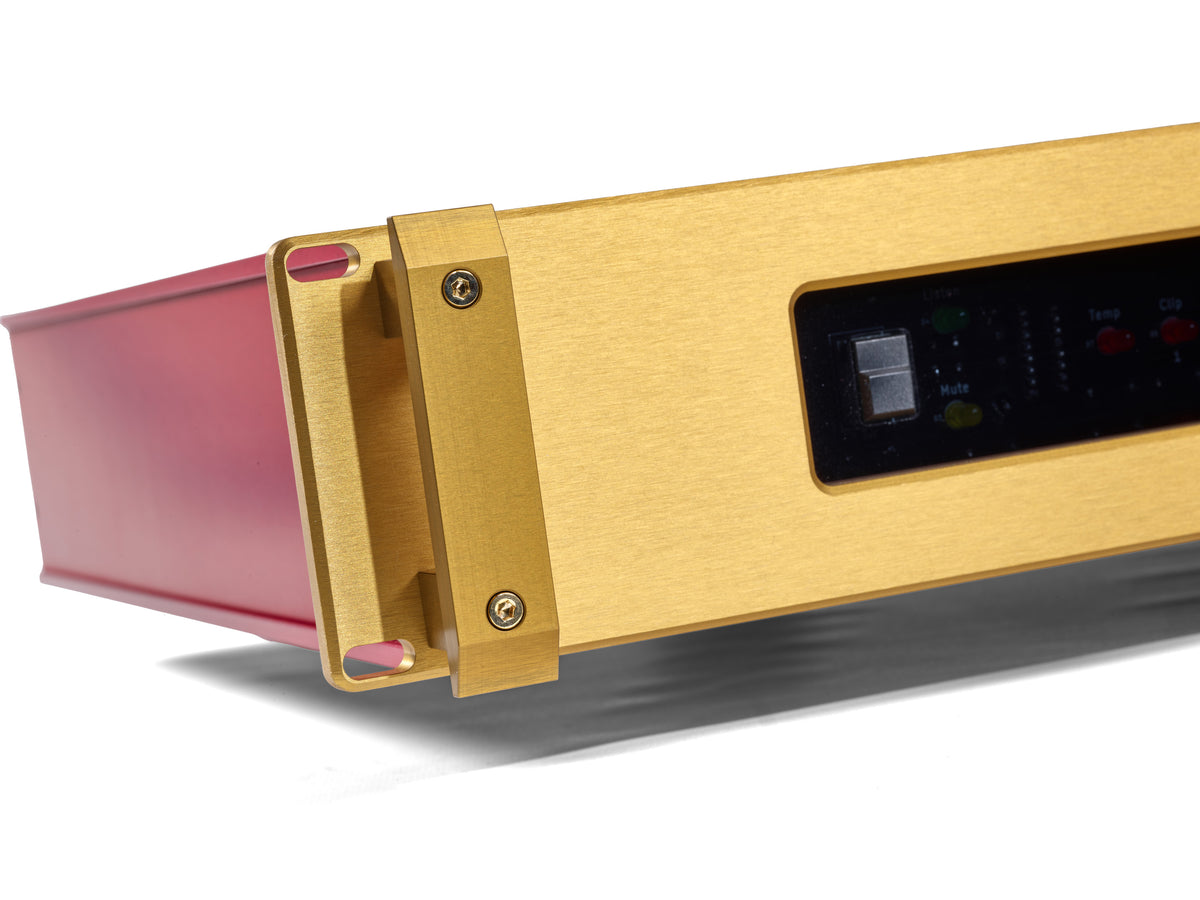

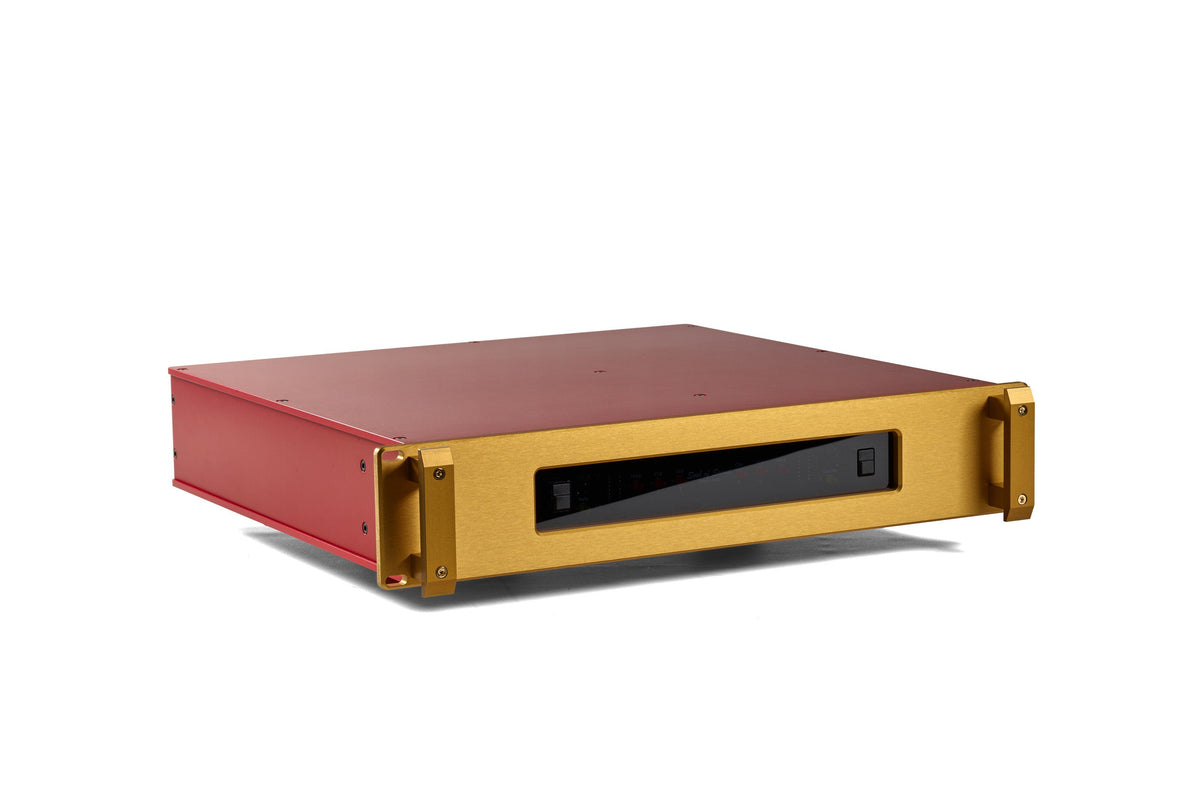

Sound was only part of it. The 43004 also had to look and feel right. The chassis was designed specifically for the amplifier and precision-machined from aluminium, with a red-anodised body, gold-anodised front panel and matching handles.
Five amplifiers were built by hand in 2021. All five are still in use today — three remain with me, while two continue to serve their original owners.
