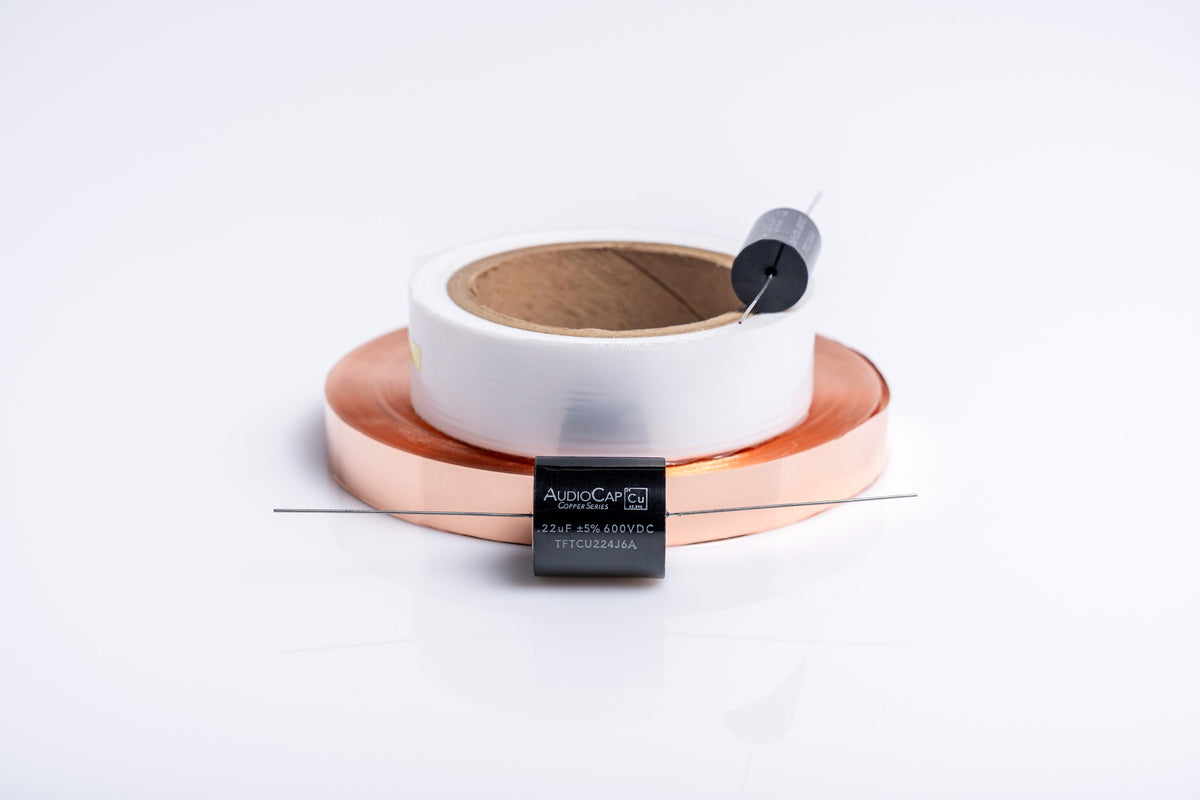

AudioCap Cu TFTCU PTFE and Copper Foil

AudioCap Copper

AudioCap Copper explores true copper-foil capacitor construction across distinctly different dielectric and structural approaches. From polypropylene to PTFE, each series uses solid copper foil as the electrode material, creating a clear distinction from conventional metallized capacitor designs.

PPTCu combines polypropylene with solid copper foil, while TFTCu pairs copper foil with PTFE, copper-sprayed terminations and 99.99% OFHC copper leads. At the top of the range, TFTCuX adds Reliable’s proprietary AudioCapX multi-section architecture, dividing the capacitor into internally connected sections to further reduce effective series resistance and inductance.

The result is a progression of genuinely different copper-foil designs – from an unusually accessible entry into true copper-foil construction to combinations of materials and architecture found nowhere else in the Reliable range.

Trade & OEM enquiries

For manufacturers, dealers and professional customers, please contact us directly.

Contact us

AudioCap Copper Series

  • PPTCu

    Polypropylene & Copper Foil

    200 VDC

  • TFTCu

    PTFE & Copper Foil
    250 · 300 · 600 VDC

  • TFTCuX

    PTFE & Copper Foil · Multi-Section
    300 · 600 VDC

PPTCu

Polypropylene & Copper Foil

PPPTCu takes a deliberately straightforward approach: a polypropylene dielectric combined with solid copper foil rather than a metallized electrode. This true film-and-foil construction gives copper a direct role in the signal path and clearly separates PPTCu from conventional metallized polypropylene capacitors.

Within the AudioCap Copper range, PPTCu represents the most direct expression of the copper-foil concept – without the additional complexity of PTFE or the AudioCapX multi-section architecture. It provides an unusually accessible entry into true copper-foil construction while retaining the familiar characteristics of a polypropylene dielectric.

Technical Specifications

Standard Tolerance: ±10%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.05% @ 1 kHz at 25°C
Insulation Resistance: 300,000 MΩ/µF; not to exceed 500,000 MΩ
Operating Temperature Range: −55°C to +105°C without derating; up to +125°C with 50% voltage derating

Available Values

200 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±10
PPTCu104K2A
Upon request
34,90
0.10 µF €34,90
— · ±10% · PPTCu104K2A
Upon request
1.00
—
±10
PPTCu105K2A
Upon request
61,90
1.00 µF €61,90
— · ±10% · PPTCu105K2A
Upon request
2.20
—
±10
PPTCu225K2A
Upon request
85,90
2.20 µF €85,90
— · ±10% · PPTCu225K2A
Upon request
4.70
—
±10
PPTCu475K2A
Upon request
134,90
4.70 µF €134,90
— · ±10% · PPTCu475K2A
Upon request
6.80
—
±10
PPTCu685K2A
Upon request
185,90
6.80 µF €185,90
— · ±10% · PPTCu685K2A
Upon request
10.0
—
±10
PPTCu106K2A
Upon request
272,90
10.0 µF €272,90
— · ±10% · PPTCu106K2A
Upon request
15.0
—
±10
PPTCu156K2A
Upon request
426,90
15.0 µF €426,90
— · ±10% · PPTCu156K2A
Upon request

TFTCu

PTFE & Copper Foil

TFTCu combines a PTFE dielectric with solid copper foil in a construction based on very low-loss materials. The capacitor ends are sprayed with copper rather than conventional tin alloys, while 99.99% OFHC copper leads continue the copper-based construction beyond the winding itself.

Within the AudioCap Copper range, TFTCu represents the step from polypropylene to PTFE while retaining true copper-foil electrodes. It is a deliberately uncompromising material combination – technically distinct from PPTCu and without the additional multi-section architecture reserved for TFTCuX.

Technical Specifications

Standard Tolerance: ±5%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.02% @ 1 kHz at 25°C
Insulation Resistance: 500,000 MΩ/µF; not to exceed 1,000,000 MΩ
Operating Temperature Range: −55°C to +200°C
Additional values from 0.01 µF are available on request.

Available Values

250 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
1.00
—
±5
TFTCu105J3A
Upon request
221,90
1.00 µF €221,90
— · ±5% · TFTCu105J3A
Upon request
1.50
—
±5
TFTCu155J3A
Upon request
255,90
1.50 µF €255,90
— · ±5% · TFTCu155J3A
Upon request
2.00
—
±5
TFTCu205J3A
Upon request
279,90
2.00 µF €279,90
— · ±5% · TFTCu205J3A
Upon request
2.20
—
±5
TFTCu225J3A
Upon request
299,90
2.20 µF €299,90
— · ±5% · TFTCu225J3A
Upon request
2.50
—
±5
TFTCu255J3A
Upon request
323,90
2.50 µF €323,90
— · ±5% · TFTCu255J3A
Upon request
3.00
—
±5
TFTCu305J3A
Upon request
364,90
3.00 µF €364,90
— · ±5% · TFTCu305J3A
Upon request
3.30
—
±5
TFTCu335J3A
Upon request
391,90
3.30 µF €391,90
— · ±5% · TFTCu335J3A
Upon request
5.00
—
±5
TFTCu505J3A
Upon request
618,90
5.00 µF €618,90
— · ±5% · TFTCu505J3A
Upon request

300 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±5
TFTCu104J3A
Upon request
126,90
0.10 µF €126,90
— · ±5% · TFTCu104J3A
Upon request
0.15
—
±5
TFTCu154J3A
Upon request
131,90
0.15 µF €131,90
— · ±5% · TFTCu154J3A
Upon request
0.22
—
±5
TFTCu224J3A
Upon request
136,90
0.22 µF €136,90
— · ±5% · TFTCu224J3A
Upon request
0.33
—
±5
TFTCu334J3A
Upon request
145,90
0.33 µF €145,90
— · ±5% · TFTCu334J3A
Upon request
0.47
—
±5
TFTCu474J3A
Upon request
157,90
0.47 µF €157,90
— · ±5% · TFTCu474J3A
Upon request
0.68
—
±5
TFTCu684J3A
Upon request
181,90
0.68 µF €181,90
— · ±5% · TFTCu684J3A
Upon request
0.82
—
±5
TFTCu824J3A
Upon request
194,90
0.82 µF €194,90
— · ±5% · TFTCu824J3A
Upon request

600 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±5
TFTCu104J3A
Upon request
128,90
0.10 µF €128,90
— · ±5% · TFTCu104J3A
Upon request
0.15
—
±5
TFTCu154J3A
Upon request
138,90
0.15 µF €138,90
— · ±5% · TFTCu154J3A
Upon request
0.22
—
±5
TFTCu224J3A
Upon request
150,90
0.22 µF €150,90
— · ±5% · TFTCu224J3A
Upon request
0.33
—
±5
TFTCu334J3A
Upon request
169,90
0.33 µF €169,90
— · ±5% · TFTCu334J3A
Upon request
0.47
—
±5
TFTCu474J3A
Upon request
192,90
0.47 µF €192,90
— · ±5% · TFTCu474J3A
Upon request
0.68
—
±5
TFTCu684J3A
Upon request
235,90
0.68 µF €235,90
— · ±5% · TFTCu684J3A
Upon request
0.82
—
±5
TFTCu824J3A
Upon request
258,90
0.82 µF €258,90
— · ±5% · TFTCu824J3A
Upon request
1.00
—
±5
TFTCu105J3A
Upon request
292,90
1.00 µF €292,90
— · ±5% · TFTCu105J3A
Upon request
1.50
—
±5
TFTCu155J3A
Upon request
444,90
1.50 µF €444,90
— · ±5% · TFTCu155J3A
Upon request
2.00
—
±5
TFTCu205J3A
Upon request
475,90
2.00 µF €475,90
— · ±5% · TFTCu205J3A
Upon request
2.20
—
±5
TFTCu225J3A
Upon request
509,90
2.20 µF €509,90
— · ±5% · TFTCu225J3A
Upon request
2.50
—
±5
TFTCu255J3A
Upon request
561,90
2.50 µF €561,90
— · ±5% · TFTCu255J3A
Upon request
3.00
—
±5
TFTCu305J3A
Upon request
643,90
3.00 µF €643,90
— · ±5% · TFTCu305J3A
Upon request
3.30
—
±5
TFTCu335J3A
Upon request
689,90
3.30 µF €689,90
— · ±5% · TFTCu335J3A
Upon request

TFTCuX

PTFE & Copper Foil · Multi-Section

TFTCuX combines a PTFE dielectric and solid copper-foil electrodes with Reliable’s proprietary AudioCapX multi-section architecture. Multiple capacitor sections are internally connected in parallel, reducing effective series resistance and inductance compared with a conventional single-section construction.

Within the AudioCap Copper range, TFTCuX represents the combination of the PTFE and copper-foil construction used in TFTCu with the additional multi-section architecture of AudioCapX. It therefore brings together the material approach of the copper-foil series with the structural concept that defines AudioCapX.

Technical Specifications

Standard Tolerance: ±5%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.02% @ 1 kHz at 25°C
Insulation Resistance: 500,000 MΩ/µF; not to exceed 1,000,000 MΩ
Operating Temperature Range: −55°C to +200°C
Additional values from 0.01 µF are available on request.

Available Values

300 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±5
TFTCuX104J3A
Upon request
152,90
0.10 µF €152,90
— · ±5% · TFTCuX104J3A
Upon request
0.15
—
±5
TFTCuX154J3A
Upon request
157,90
0.15 µF €157,90
— · ±5% · TFTCuX154J3A
Upon request
0.22
—
±5
TFTCuX224J3A
Upon request
163,90
0.22 µF €163,90
— · ±5% · TFTCuX224J3A
Upon request
0.33
—
±5
TFTCuX334J3A
Upon request
175,90
0.33 µF €175,90
— · ±5% · TFTCuX334J3A
Upon request
0.47
—
±5
TFTCuX474J3A
Upon request
189,90
0.47 µF €189,90
— · ±5% · TFTCuX474J3A
Upon request
0.68
—
±5
TFTCuX684J3A
Upon request
210,90
0.68 µF €210,90
— · ±5% · TFTCuX684J3A
Upon request
0.82
—
±5
TFTCuX824J3A
Upon request
224,90
0.82 µF €224,90
— · ±5% · TFTCuX824J3A
Upon request
1.00
—
±5
TFTCuX105J3A
Upon request
243,90
1.00 µF €243,90
— · ±5% · TFTCuX105J3A
Upon request
1.50
—
±5
TFTCuX155J3A
Upon request
295,90
1.50 µF €295,90
— · ±5% · TFTCuX155J3A
Upon request
2.00
—
±5
TFTCuX205J3A
Upon request
348,90
2.00 µF €348,90
— · ±5% · TFTCuX205J3A
Upon request
2.20
—
±5
TFTCuX225J3A
Upon request
404,90
2.20 µF €404,90
— · ±5% · TFTCuX225J3A
Upon request
2.50
—
±5
TFTCuX255J3A
Upon request
437,90
2.50 µF €437,90
— · ±5% · TFTCuX255J3A
Upon request
3.00
—
±5
TFTCuX305J3A
Upon request
492,90
3.00 µF €492,90
— · ±5% · TFTCuX305J3A
Upon request
5.60
—
±5
TFTCuX565J3A
Upon request
550,90
5.60 µF €550,90
— · ±5% · TFTCuX565J3A
Upon request

600 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±5
TFTCuX104J3A
Upon request
171,90
0.10 µF €171,90
— · ±5% · TFTCuX104J3A
Upon request
0.15
—
±5
TFTCuX154J3A
Upon request
184,90
0.15 µF €184,90
— · ±5% · TFTCuX154J3A
Upon request
0.22
—
±5
TFTCuX224J3A
Upon request
201,90
0.22 µF €201,90
— · ±5% · TFTCuX224J3A
Upon request
0.33
—
±5
TFTCuX334J3A
Upon request
227,90
0.33 µF €227,90
— · ±5% · TFTCuX334J3A
Upon request
0.47
—
±5
TFTCuX474J3A
Upon request
258,90
0.47 µF €258,90
— · ±5% · TFTCuX474J3A
Upon request
0.68
—
±5
TFTCuX684J3A
Upon request
315,90
0.68 µF €315,90
— · ±5% · TFTCuX684J3A
Upon request
0.82
—
±5
TFTCuX824J3A
Upon request
346,90
0.82 µF €346,90
— · ±5% · TFTCuX824J3A
Upon request
1.00
—
±5
TFTCuX105J3A
Upon request
391,90
1.00 µF €391,90
— · ±5% · TFTCuX105J3A
Upon request
1.50
—
±5
TFTCuX155J3A
Upon request
594,90
1.50 µF €594,90
— · ±5% · TFTCuX155J3A
Upon request
2.00
—
±5
TFTCuX205J3A
Upon request
635,90
2.00 µF €635,90
— · ±5% · TFTCuX205J3A
Upon request
2.20
—
±5
TFTCuX225J3A
Upon request
681,90
2.20 µF €681,90
— · ±5% · TFTCuX225J3A
Upon request
2.50
—
±5
TFTCuX255J3A
Upon request
750,90
2.50 µF €750,90
— · ±5% · TFTCuX255J3A
Upon request
3.00
—
±5
TFTCuX305J3A
Upon request
860,90
3.00 µF €860,90
— · ±5% · TFTCuX305J3A
Upon request
3.30
—
±5
TFTCuX335J3A
Upon request
921,90
3.30 µF €921,90
— · ±5% · TFTCuX335J3A
Upon request

Manufacturer & Product Safety

Manufacturer

Reliable Capacitors
2233 Mountain Vista Lane
Provo, Utah 84606
USA
info@reliablecapacitors.com


EU Importer / Responsible Person

Soul of Sound GmbH
Am Goldbichl 17
82054 Sauerlach
Germany
ingo@soul-of-sound.com


Product identification

Product designation, capacitance and rated voltage are stated with the respective product.
