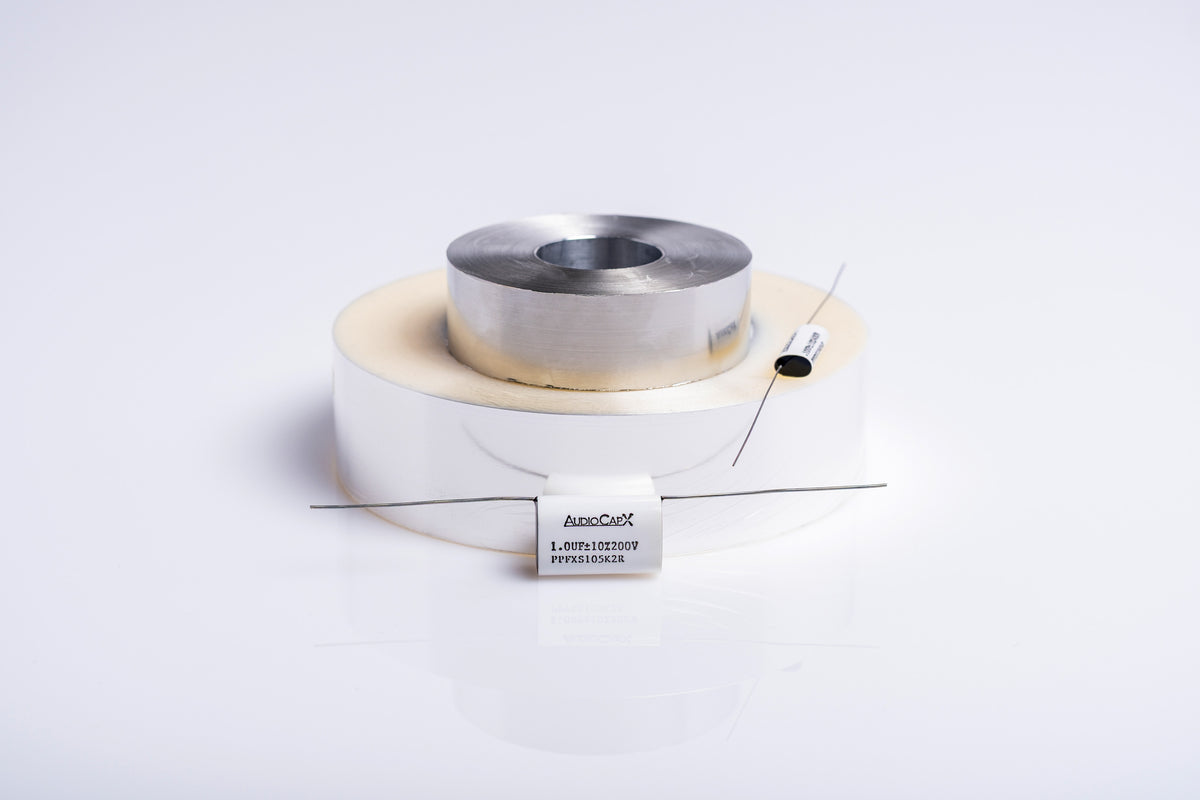

AudioCapX PPFXS Multi Section Flattened Polypropylene and Tin Foil

The multi-section capacitor.

AudioCapX is the current evolution of the original MultiCap™ concept developed by Richard Marsh. Instead of a single conventional winding, several capacitor sections — typically ten — are wound coaxially into one component and internally connected in parallel. This dramatically reduces the effective inductance: Reliable specifies it as no greater than that of a piece of lead wire the same length as the capacitor body. Measured ESR values are likewise exceptionally low, typically five to ten times below those of conventional capacitor designs.

The multi-section architecture is also inherently self-bypassing. Rather than lowering high-frequency impedance by adding smaller external bypass capacitors — and potentially introducing multiple resonance points — AudioCapX integrates these parallel sections within a single component.

What makes AudioCapX particularly unusual is that this construction requires more than a different winding recipe. Reliable manufactures its multi-section capacitors on proprietary winding equipment operated specifically for this purpose. Combined with its largely hand-built production in the USA, AudioCapX is a purpose-built component for applications where the capacitor itself is expected to become part of the performance.

Trade & OEM enquiries

For manufacturers, dealers and professional customers, please contact us directly.

Contact us

AudioCapX Series

  • PPMFX

    Metallized Polypropylene

    200 · 400 · 600 VDC

  • PPFX

    Polypropylene & Aluminum Foil

    200 · 400 · 600 VDC

  • PPFXS

    Polypropylene & Tin Foil

    200 · 400 · 600 VDC

PPMFX

Metallized Polypropylene

PPMFX is the metallized polypropylene version of the AudioCapX multi-section design. It combines the compact size and self-healing behaviour of a metallized capacitor with the low-loss, internally bypassed architecture of AudioCapX.

Within the AudioCapX range, PPMFX offers a particularly versatile implementation of the multi-section concept. Its metallized construction allows a comparatively compact format while retaining the low-inductance, internally paralleled architecture that defines the series.

Technical Specifications

Standard Tolerance: ±10%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.05% @ 1 kHz at 25°C
Insulation Resistance: 300,000 MΩ/µF; not to exceed 500,000 MΩ
Operating Temperature Range: −55°C to +105°C without derating; up to +125°C with 50% voltage derating

Available Values

200 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
7.6 × 12.7 × 15.2
±10
PPMFX104K2R
Upon request
17,90
0.10 µF €17,90
7.6 × 12.7 × 15.2 mm · ±10% · PPMFX104K2R
Upon request
0.22
7.6 × 12.7 × 20.3
±10
PPMFX224K2R
Upon request
17,90
0.22 µF €17,90
7.6 × 12.7 × 20.3 mm · ±10% · PPMFX224K2R
Upon request
0.33
7.6 × 12.7 × 20.3
±10
PPMFX334K2R
Upon request
18,90
0.33 µF €18,90
7.6 × 12.7 × 20.3 mm · ±10% · PPMFX334K2R
Upon request
0.39
—
±10
PPMFX394K2R
Upon request
19,90
0.39 µF €19,90
— · ±10% · PPMFX394K2R
Upon request
0.47
7.6 × 12.7 × 27.9
±10
PPMFX474K2R
Upon request
19,90
0.47 µF €19,90
7.6 × 12.7 × 27.9 mm · ±10% · PPMFX474K2R
Upon request
0.68
10.2 × 15.2 × 27.9
±10
PPMFX684K2R
Upon request
19,90
0.68 µF €19,90
10.2 × 15.2 × 27.9 mm · ±10% · PPMFX684K2R
Upon request
0.82
—
±10
PPMFX824K2R
Upon request
20,90
0.82 µF €20,90
— · ±10% · PPMFX824K2R
Upon request
1.0
12.7 × 17.8 × 27.9
±10
PPMFX105K2R
Upon request
22,90
1.0 µF €22,90
12.7 × 17.8 × 27.9 mm · ±10% · PPMFX105K2R
Upon request
1.5
—
±10
PPMFX155K2R
Upon request
23,90
1.5 µF €23,90
— · ±10% · PPMFX155K2R
Upon request
2.0
15.2 × 20.3 × 33.0
±10
PPMFX205K2R
Upon request
30,90
2.0 µF €30,90
15.2 × 20.3 × 33.0 mm · ±10% · PPMFX205K2R
Upon request
3.0
17.8 × 22.9 × 33.0
±10
PPMFX305K2R
Upon request
31,90
3.0 µF €31,90
17.8 × 22.9 × 33.0 mm · ±10% · PPMFX305K2R
Upon request
4.0
17.8 × 22.9 × 38.1
±10
PPMFX405K2R
Upon request
36,90
4.0 µF €36,90
17.8 × 22.9 × 38.1 mm · ±10% · PPMFX405K2R
Upon request
4.7
—
±10
PPMFX475K2R
Upon request
41,90
4.7 µF €41,90
— · ±10% · PPMFX475K2R
Upon request
5.0
17.8 × 22.9 × 45.7
±10
PPMFX505K2R
Upon request
42,90
5.0 µF €42,90
17.8 × 22.9 × 45.7 mm · ±10% · PPMFX505K2R
Upon request
6.0
—
±10
PPMFX605K2R
Upon request
44,90
6.0 µF €44,90
— · ±10% · PPMFX605K2R
Upon request
6.8
—
±10
PPMFX685K2R
Upon request
51,90
6.8 µF €51,90
— · ±10% · PPMFX685K2R
Upon request
7.0
—
±10
PPMFX705K2R
Upon request
52,90
7.0 µF €52,90
— · ±10% · PPMFX705K2R
Upon request
8.0
22.9 × 27.9 × 45.7
±10
PPMFX805K2R
Upon request
56,90
8.0 µF €56,90
22.9 × 27.9 × 45.7 mm · ±10% · PPMFX805K2R
Upon request
9.0
—
±10
PPMFX905K2R
Upon request
61,90
9.0 µF €61,90
— · ±10% · PPMFX905K2R
Upon request
10.0
25.4 × 30.5 × 53.3
±10
PPMFX106K2R
Upon request
66,90
10.0 µF €66,90
25.4 × 30.5 × 53.3 mm · ±10% · PPMFX106K2R
Upon request
12.0
—
±10
PPMFX126K2R
Upon request
72,90
12.0 µF €72,90
— · ±10% · PPMFX126K2R
Upon request
15.0
27.9 × 33.0 × 50.8
±10
PPMFX156K2R
Upon request
75,90
15.0 µF €75,90
27.9 × 33.0 × 50.8 mm · ±10% · PPMFX156K2R
Upon request
16.0
—
±10
PPMFX166K2R
Upon request
75,90
16.0 µF €75,90
— · ±10% · PPMFX166K2R
Upon request
20.0
33.0 × 38.1 × 53.3
±10
PPMFX206K2R
Upon request
92,90
20.0 µF €92,90
33.0 × 38.1 × 53.3 mm · ±10% · PPMFX206K2R
Upon request
25.0
—
±10
PPMFX256K2R
Upon request
97,90
25.0 µF €97,90
— · ±10% · PPMFX256K2R
Upon request
30.0
33.0 × 38.1 × 71.1
±10
PPMFX306K2R
Upon request
100,90
30.0 µF €100,90
33.0 × 38.1 × 71.1 mm · ±10% · PPMFX306K2R
Upon request
44.0
—
±10
PPMFX446K2R
Upon request
109,90
44.0 µF €109,90
— · ±10% · PPMFX446K2R
Upon request
68.0
—
±10
PPMFX686K2R
Upon request
122,90
68.0 µF €122,90
— · ±10% · PPMFX686K2R
Upon request

400 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.01
—
±10
PPMFX103K4R
Upon request
17,90
0.01 µF €17,90
— · ±10% · PPMFX103K4R
Upon request
0.10
7.6 × 12.7 × 20.3
±10
PPMFX104K4R
Upon request
19,90
0.10 µF €19,90
7.6 × 12.7 × 20.3 mm · ±10% · PPMFX104K4R
Upon request
0.22
10.2 × 15.2 × 20.3
±10
PPMFX224K4R
Upon request
21,90
0.22 µF €21,90
10.2 × 15.2 × 20.3 mm · ±10% · PPMFX224K4R
Upon request
0.33
10.2 × 15.2 × 25.4
±10
PPMFX334K4R
Upon request
24,90
0.33 µF €24,90
10.2 × 15.2 × 25.4 mm · ±10% · PPMFX334K4R
Upon request
0.47
12.7 × 17.8 × 27.9
±10
PPMFX474K4R
Upon request
28,90
0.47 µF €28,90
12.7 × 17.8 × 27.9 mm · ±10% · PPMFX474K4R
Upon request
0.68
12.7 × 20.3 × 33.0
±10
PPMFX684K4R
Upon request
30,90
0.68 µF €30,90
12.7 × 20.3 × 33.0 mm · ±10% · PPMFX684K4R
Upon request
1.0
17.8 × 20.3 × 33.0
±10
PPMFX105K4R
Upon request
32,90
1.0 µF €32,90
17.8 × 20.3 × 33.0 mm · ±10% · PPMFX105K4R
Upon request
2.0
25.4 × 27.9 × 33.0
±10
PPMFX205K4R
Upon request
33,90
2.0 µF €33,90
25.4 × 27.9 × 33.0 mm · ±10% · PPMFX205K4R
Upon request
3.0
22.9 × 27.9 × 45.7
±10
PPMFX305K4R
Upon request
41,90
3.0 µF €41,90
22.9 × 27.9 × 45.7 mm · ±10% · PPMFX305K4R
Upon request
4.0
27.9 × 30.5 × 45.7
±10
PPMFX405K4R
Upon request
41,90
4.0 µF €41,90
27.9 × 30.5 × 45.7 mm · ±10% · PPMFX405K4R
Upon request
5.0
30.5 × 35.6 × 45.7
±10
PPMFX505K4R
Upon request
44,90
5.0 µF €44,90
30.5 × 35.6 × 45.7 mm · ±10% · PPMFX505K4R
Upon request
6.0
—
±10
PPMFX605K4R
Upon request
48,90
6.0 µF €48,90
— · ±10% · PPMFX605K4R
Upon request
10.0
—
±10
PPMFX106K4R
Upon request
70,90
10.0 µF €70,90
— · ±10% · PPMFX106K4R
Upon request

600 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.01
5.1 × 7.6 × 15.2
±10
PPMFX103K6R
Upon request
17,90
0.01 µF €17,90
5.1 × 7.6 × 15.2 mm · ±10% · PPMFX103K6R
Upon request
0.022
5.1 × 10.2 × 15.2
±10
PPMFX223K6R
Upon request
17,90
0.022 µF €17,90
5.1 × 10.2 × 15.2 mm · ±10% · PPMFX223K6R
Upon request
0.033
—
±10
PPMFX333K6R
Upon request
17,90
0.033 µF €17,90
— · ±10% · PPMFX333K6R
Upon request
0.047
7.6 × 10.2 × 15.2
±10
PPMFX473K6R
Upon request
18,90
0.047 µF €18,90
7.6 × 10.2 × 15.2 mm · ±10% · PPMFX473K6R
Upon request
0.068
—
±10
PPMFX683K6R
Upon request
18,90
0.068 µF €18,90
— · ±10% · PPMFX683K6R
Upon request
0.10
7.6 × 15.2 × 20.3
±10
PPMFX104K6R
Upon request
30,90
0.10 µF €30,90
7.6 × 15.2 × 20.3 mm · ±10% · PPMFX104K6R
Upon request
0.22
12.7 × 15.2 × 25.4
±10
PPMFX224K6R
Upon request
32,90
0.22 µF €32,90
12.7 × 15.2 × 25.4 mm · ±10% · PPMFX224K6R
Upon request
0.33
12.7 × 17.8 × 25.4
±10
PPMFX334K6R
Upon request
37,90
0.33 µF €37,90
12.7 × 17.8 × 25.4 mm · ±10% · PPMFX334K6R
Upon request
0.47
15.2 × 20.3 × 33.0
±10
PPMFX474K6R
Upon request
43,90
0.47 µF €43,90
15.2 × 20.3 × 33.0 mm · ±10% · PPMFX474K6R
Upon request
0.68
17.8 × 22.9 × 33.0
±10
PPMFX684K6R
Upon request
48,90
0.68 µF €48,90
17.8 × 22.9 × 33.0 mm · ±10% · PPMFX684K6R
Upon request
1.0
17.8 × 25.4 × 33.0
±10
PPMFX105K6R
Upon request
38,90
1.0 µF €38,90
17.8 × 25.4 × 33.0 mm · ±10% · PPMFX105K6R
Upon request
2.0
—
±10
PPMFX205K6R
Upon request
43,90
2.0 µF €43,90
— · ±10% · PPMFX205K6R
Upon request

PPFX

Polypropylene & Aluminum Foil

PPFX is the aluminum-foil version of the AudioCapX multi-section design. It combines a polypropylene dielectric with solid aluminum foil electrodes and the internally paralleled architecture of AudioCapX, providing low losses and low effective inductance in a robust film-and-foil construction.

Within the AudioCapX film-and-foil range, PPFX provides the aluminum-foil alternative to PPFXS. Its construction is suited to demanding current and temperature conditions while retaining the characteristic multi-section architecture that distinguishes AudioCapX from conventional wound capacitors.

Technical Specifications

Standard Tolerance: ±10%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.05% @ 1 kHz at 25°C
Insulation Resistance: 300,000 MΩ/µF; not to exceed 500,000 MΩ
Operating Temperature Range: −55°C to +105°C without derating

Available Values

200 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
—
±10
PPFX104K2R
Upon request
24,90
0.10 µF €24,90
— · ±10% · PPFX104K2R
Upon request
0.22
—
±10
PPFX224K2R
Upon request
24,90
0.22 µF €24,90
— · ±10% · PPFX224K2R
Upon request
0.33
—
±10
PPFX334K2R
Upon request
25,90
0.33 µF €25,90
— · ±10% · PPFX334K2R
Upon request
0.47
—
±10
PPFX474K2R
Upon request
29,90
0.47 µF €29,90
— · ±10% · PPFX474K2R
Upon request
0.68
—
±10
PPFX684K2R
Upon request
32,90
0.68 µF €32,90
— · ±10% · PPFX684K2R
Upon request
1.0
15.2 × 22.9 × 33.0
±10
PPFX105K2R
Upon request
33,90
1.0 µF €33,90
15.2 × 22.9 × 33.0 mm · ±10% · PPFX105K2R
Upon request
1.5
17.8 × 25.4 × 33.0
±10
PPFX155K2R
Upon request
37,90
1.5 µF €37,90
17.8 × 25.4 × 33.0 mm · ±10% · PPFX155K2R
Upon request
2.0
22.9 × 27.9 × 33.0
±10
PPFX205K2R
Upon request
43,90
2.0 µF €43,90
22.9 × 27.9 × 33.0 mm · ±10% · PPFX205K2R
Upon request
3.0
22.9 × 27.9 × 45.7
±10
PPFX305K2R
Upon request
57,90
3.0 µF €57,90
22.9 × 27.9 × 45.7 mm · ±10% · PPFX305K2R
Upon request
4.0
25.4 × 33.0 × 45.7
±10
PPFX405K2R
Upon request
67,90
4.0 µF €67,90
25.4 × 33.0 × 45.7 mm · ±10% · PPFX405K2R
Upon request
5.0
30.5 × 38.1 × 45.7
±10
PPFX505K2R
Upon request
77,90
5.0 µF €77,90
30.5 × 38.1 × 45.7 mm · ±10% · PPFX505K2R
Upon request
6.0
30.5 × 38.1 × 45.7
±10
PPFX605K2R
Upon request
88,90
6.0 µF €88,90
30.5 × 38.1 × 45.7 mm · ±10% · PPFX605K2R
Upon request
7.0
27.9 × 35.6 × 58.4
±10
PPFX705K2R
Upon request
96,90
7.0 µF €96,90
27.9 × 35.6 × 58.4 mm · ±10% · PPFX705K2R
Upon request
8.0
30.5 × 38.1 × 58.4
±10
PPFX805K2R
Upon request
104,90
8.0 µF €104,90
30.5 × 38.1 × 58.4 mm · ±10% · PPFX805K2R
Upon request
10.0
35.6 × 43.2 × 58.4
±10
PPFX106K2R
Upon request
107,90
10.0 µF €107,90
35.6 × 43.2 × 58.4 mm · ±10% · PPFX106K2R
Upon request
12.0
38.1 × 43.2 × 58.4
±10
PPFX126K2R
Upon request
118,90
12.0 µF €118,90
38.1 × 43.2 × 58.4 mm · ±10% · PPFX126K2R
Upon request
14.0
—
±10
PPFX146K2R
Upon request
138,90
14.0 µF €138,90
— · ±10% · PPFX146K2R
Upon request
15.0
—
±10
PPFX156K2R
Upon request
129,90
15.0 µF €129,90
— · ±10% · PPFX156K2R
Upon request
16.0
—
±10
PPFX166K2R
Upon request
139,90
16.0 µF €139,90
— · ±10% · PPFX166K2R
Upon request

400 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
7.6 × 12.7 × 25.4
±10
PPFX104K4R
Upon request
22,90
0.10 µF €22,90
7.6 × 12.7 × 25.4 mm · ±10% · PPFX104K4R
Upon request
0.22
10.2 × 15.2 × 27.9
±10
PPFX224K4R
Upon request
26,90
0.22 µF €26,90
10.2 × 15.2 × 27.9 mm · ±10% · PPFX224K4R
Upon request
0.33
12.7 × 17.8 × 33.0
±10
PPFX334K4R
Upon request
27,90
0.33 µF €27,90
12.7 × 17.8 × 33.0 mm · ±10% · PPFX334K4R
Upon request
0.47
12.7 × 20.3 × 33.0
±10
PPFX474K4R
Upon request
32,90
0.47 µF €32,90
12.7 × 20.3 × 33.0 mm · ±10% · PPFX474K4R
Upon request
0.68
15.2 × 22.9 × 35.6
±10
PPFX684K4R
Upon request
36,90
0.68 µF €36,90
15.2 × 22.9 × 35.6 mm · ±10% · PPFX684K4R
Upon request
1.0
17.8 × 25.4 × 33.0
±10
PPFX105K4R
Upon request
60,90
1.0 µF €60,90
17.8 × 25.4 × 33.0 mm · ±10% · PPFX105K4R
Upon request
1.5
—
±10
PPFX155K4R
Upon request
89,90
1.5 µF €89,90
— · ±10% · PPFX155K4R
Upon request
2.0
—
±10
PPFX205K4R
Upon request
117,90
2.0 µF €117,90
— · ±10% · PPFX205K4R
Upon request

600 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.01
—
±10
PPFX103K6R
Upon request
11,90
0.01 µF €11,90
— · ±10% · PPFX103K6R
Upon request
0.022
—
±10
PPFX223K6R
Upon request
16,90
0.022 µF €16,90
— · ±10% · PPFX223K6R
Upon request
0.033
—
±10
PPFX333K6R
Upon request
17,90
0.033 µF €17,90
— · ±10% · PPFX333K6R
Upon request
0.047
—
±10
PPFX473K6R
Upon request
21,90
0.047 µF €21,90
— · ±10% · PPFX473K6R
Upon request
0.068
—
±10
PPFX683K6R
Upon request
25,90
0.068 µF €25,90
— · ±10% · PPFX683K6R
Upon request
0.082
—
±10
PPFX823K6R
Upon request
28,90
0.082 µF €28,90
— · ±10% · PPFX823K6R
Upon request
0.10
10.2 × 15.2 × 27.9
±10
PPFX104K6R
Upon request
27,90
0.10 µF €27,90
10.2 × 15.2 × 27.9 mm · ±10% · PPFX104K6R
Upon request
0.22
12.7 × 17.8 × 30.5
±10
PPFX224K6R
Upon request
27,90
0.22 µF €27,90
12.7 × 17.8 × 30.5 mm · ±10% · PPFX224K6R
Upon request
0.33
15.2 × 20.3 × 33.0
±10
PPFX334K6R
Upon request
30,90
0.33 µF €30,90
15.2 × 20.3 × 33.0 mm · ±10% · PPFX334K6R
Upon request
0.47
17.8 × 22.9 × 33.0
±10
PPFX474K6R
Upon request
37,90
0.47 µF €37,90
17.8 × 22.9 × 33.0 mm · ±10% · PPFX474K6R
Upon request
0.68
17.8 × 22.9 × 45.7
±10
PPFX684K6R
Upon request
41,90
0.68 µF €41,90
17.8 × 22.9 × 45.7 mm · ±10% · PPFX684K6R
Upon request
1.0
20.3 × 27.9 × 45.7
±10
PPFX105K6R
Upon request
75,90
1.0 µF €75,90
20.3 × 27.9 × 45.7 mm · ±10% · PPFX105K6R
Upon request

PPFXS

Polypropylene & Tin Foil

PPFXS is the tin-foil version of the AudioCapX multi-section design. It combines a polypropylene dielectric with solid tin foil electrodes and the internally paralleled architecture of AudioCapX, providing low losses and low effective inductance in a true film-and-foil construction.

Within the AudioCapX film-and-foil range, PPFXS provides the tin-foil alternative to PPFX. The change in electrode material gives it a distinctly different construction while retaining the characteristic low-inductance, multi-section architecture that defines AudioCapX.

Technical Specifications

Standard Tolerance: ±10%
Custom tolerances available on request.
Test Voltage: 1.5 × rated voltage for one minute
Dissipation Factor: <0.05% @ 1 kHz at 25°C
Operating Temperature Range: −55°C to +85°C without derating

Available Values

200 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.47
13.2 × 20.8 × 33.0
±10
PPFXS474K2R
Upon request
30,90
0.47 µF €30,90
13.2 × 20.8 × 33.0 mm · ±10% · PPFXS474K2R
Upon request
0.68
15.7 × 23.4 × 35.6
±10
PPFXS684K2R
Upon request
33,90
0.68 µF €33,90
15.7 × 23.4 × 35.6 mm · ±10% · PPFXS684K2R
Upon request
1.0
15.7 × 23.4 × 33.0
±10
PPFXS105K2R
Upon request
34,90
1.0 µF €34,90
15.7 × 23.4 × 33.0 mm · ±10% · PPFXS105K2R
Upon request
1.5
18.3 × 30.5 × 33.0
±10
PPFXS155K2R
Upon request
38,90
1.5 µF €38,90
18.3 × 30.5 × 33.0 mm · ±10% · PPFXS155K2R
Upon request
2.0
23.4 × 30.5 × 33.0
±10
PPFXS205K2R
Upon request
44,90
2.0 µF €44,90
23.4 × 30.5 × 33.0 mm · ±10% · PPFXS205K2R
Upon request
3.0
22.9 × 30.5 × 45.7
±10
PPFXS305K2R
Upon request
59,90
3.0 µF €59,90
22.9 × 30.5 × 45.7 mm · ±10% · PPFXS305K2R
Upon request
4.0
30.5 × 35.6 × 45.7
±10
PPFXS405K2R
Upon request
68,90
4.0 µF €68,90
30.5 × 35.6 × 45.7 mm · ±10% · PPFXS405K2R
Upon request
5.0
35.6 × 38.1 × 45.7
±10
PPFXS505K2R
Upon request
79,90
5.0 µF €79,90
35.6 × 38.1 × 45.7 mm · ±10% · PPFXS505K2R
Upon request
6.0
35.6 × 38.1 × 45.7
±10
PPFXS605K2R
Upon request
89,90
6.0 µF €89,90
35.6 × 38.1 × 45.7 mm · ±10% · PPFXS605K2R
Upon request
7.0
33.0 × 38.1 × 58.4
±10
PPFXS705K2R
Upon request
98,90
7.0 µF €98,90
33.0 × 38.1 × 58.4 mm · ±10% · PPFXS705K2R
Upon request
8.0
38.1 × 45.7 × 58.4
±10
PPFXS805K2R
Upon request
106,90
8.0 µF €106,90
38.1 × 45.7 × 58.4 mm · ±10% · PPFXS805K2R
Upon request
10.0
40.6 × 45.7 × 58.4
±10
PPFXS106K2R
Upon request
109,90
10.0 µF €109,90
40.6 × 45.7 × 58.4 mm · ±10% · PPFXS106K2R
Upon request
12.0
43.2 × 45.7 × 58.4
±10
PPFXS126K2R
Upon request
120,90
12.0 µF €120,90
43.2 × 45.7 × 58.4 mm · ±10% · PPFXS126K2R
Upon request

400 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.10
8.1 × 13.2 × 25.4
±10
PPFXS104K4R
Upon request
22,90
0.10 µF €22,90
8.1 × 13.2 × 25.4 mm · ±10% · PPFXS104K4R
Upon request
0.22
10.7 × 15.7 × 27.9
±10
PPFXS224K4R
Upon request
27,90
0.22 µF €27,90
10.7 × 15.7 × 27.9 mm · ±10% · PPFXS224K4R
Upon request
0.33
13.2 × 18.3 × 33.0
±10
PPFXS334K4R
Upon request
28,90
0.33 µF €28,90
13.2 × 18.3 × 33.0 mm · ±10% · PPFXS334K4R
Upon request
0.47
13.2 × 20.8 × 33.0
±10
PPFXS474K4R
Upon request
33,90
0.47 µF €33,90
13.2 × 20.8 × 33.0 mm · ±10% · PPFXS474K4R
Upon request
0.68
15.7 × 23.4 × 35.6
±10
PPFXS684K4R
Upon request
36,90
0.68 µF €36,90
15.7 × 23.4 × 35.6 mm · ±10% · PPFXS684K4R
Upon request
1.0
18.3 × 30.5 × 33.0
±10
PPFXS105K4R
Upon request
61,90
1.0 µF €61,90
18.3 × 30.5 × 33.0 mm · ±10% · PPFXS105K4R
Upon request
1.5
—
±10
PPFXS155K4R
Upon request
91,90
1.5 µF €91,90
— · ±10% · PPFXS155K4R
Upon request
2.0
—
±10
PPFXS205K4R
Upon request
120,90
2.0 µF €120,90
— · ±10% · PPFXS205K4R
Upon request
3.0
—
±10
PPFXS305K4R
Upon request
149,90
3.0 µF €149,90
— · ±10% · PPFXS305K4R
Upon request

600 VDC ⌄
Capacity [µF]
Dimensions [mm]
Tolerance [%]
Part No.
Availability
Price [EUR]
0.01
—
±10
PPFXS103K6R
Upon request
12,90
0.01 µF €12,90
— · ±10% · PPFXS103K6R
Upon request
0.022
—
±10
PPFXS223K6R
Upon request
16,90
0.022 µF €16,90
— · ±10% · PPFXS223K6R
Upon request
0.033
—
±10
PPFXS333K6R
Upon request
18,90
0.033 µF €18,90
— · ±10% · PPFXS333K6R
Upon request
0.047
—
±10
PPFXS473K6R
Upon request
23,90
0.047 µF €23,90
— · ±10% · PPFXS473K6R
Upon request
0.068
—
±10
PPFXS683K6R
Upon request
26,90
0.068 µF €26,90
— · ±10% · PPFXS683K6R
Upon request
0.082
—
±10
PPFXS823K6R
Upon request
30,90
0.082 µF €30,90
— · ±10% · PPFXS823K6R
Upon request
0.10
10.7 × 15.7 × 27.9
±10
PPFXS104K6R
Upon request
28,90
0.10 µF €28,90
10.7 × 15.7 × 27.9 mm · ±10% · PPFXS104K6R
Upon request
0.22
13.2 × 18.3 × 30.5
±10
PPFXS224K6R
Upon request
29,90
0.22 µF €29,90
13.2 × 18.3 × 30.5 mm · ±10% · PPFXS224K6R
Upon request
0.33
15.7 × 20.8 × 33.0
±10
PPFXS334K6R
Upon request
31,90
0.33 µF €31,90
15.7 × 20.8 × 33.0 mm · ±10% · PPFXS334K6R
Upon request
0.47
18.3 × 23.4 × 33.0
±10
PPFXS474K6R
Upon request
38,90
0.47 µF €38,90
18.3 × 23.4 × 33.0 mm · ±10% · PPFXS474K6R
Upon request
0.68
18.3 × 23.4 × 45.7
±10
PPFXS684K6R
Upon request
43,90
0.68 µF €43,90
18.3 × 23.4 × 45.7 mm · ±10% · PPFXS684K6R
Upon request
1.0
20.8 × 30.5 × 45.7
±10
PPFXS105K6R
Upon request
77,90
1.0 µF €77,90
20.8 × 30.5 × 45.7 mm · ±10% · PPFXS105K6R
Upon request

Manufacturer & Product Safety

Manufacturer

Reliable Capacitors
2233 Mountain Vista Lane
Provo, Utah 84606
USA
info@reliablecapacitors.com


EU Importer / Responsible Person

Soul of Sound GmbH
Am Goldbichl 17
82054 Sauerlach
Germany
ingo@soul-of-sound.com


Product identification

Product designation, capacitance and rated voltage are stated with the respective product.
