Broadcast Preamplifier

Soul of Sound Broadcast Preamplifier

Built from another era of audio.

The Danner cassette became the modular language of German broadcast studios in the 1970s. Neumann, Telefunken, TAB, Siemens, RTW and others built amplifiers, equalizers, meters, faders and control modules around the same mechanical format.

They were never conceived as hi-fi objects. They were working tools. Made to sit in a control room, day after day, year after year.

The Broadcast Preamplifier brings a selection of those modules together again — not as restoration, but as a working system.

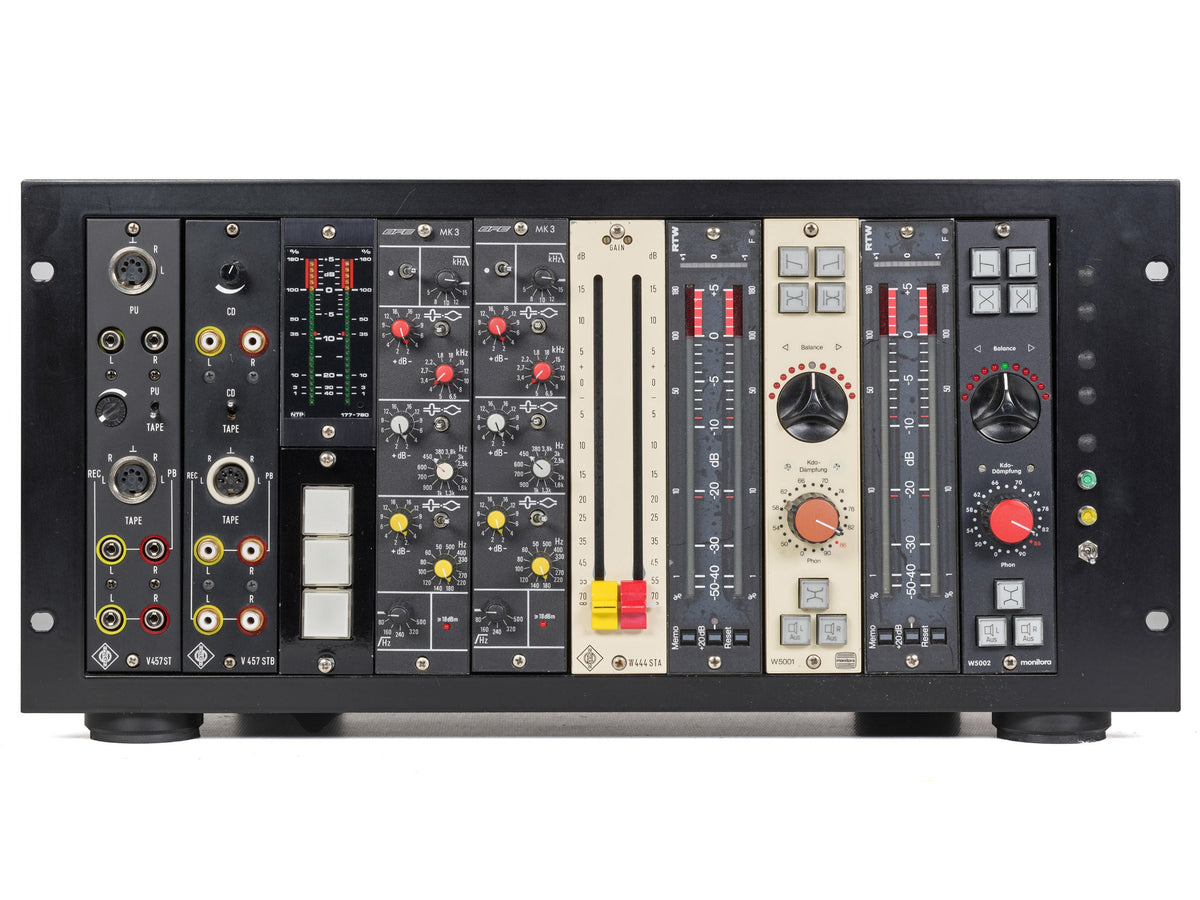

The Broadcast Preamplifier follows a complete stereo signal path built around the Danner cassette format.
A Neumann phono input, a Neumann line input and a balanced direct input feed a Soul of Sound B1 input selector, followed by NTB B1 input metering. From there, the signal passes through two independent BFE equalizers — exact copies of the highly regarded Filtek design — then through a Neumann stereo fader.
Two independent balanced outputs complete the chain, using Monitora master modules and RTW output metering.

Soul of Sound Broadcast Preamplifier

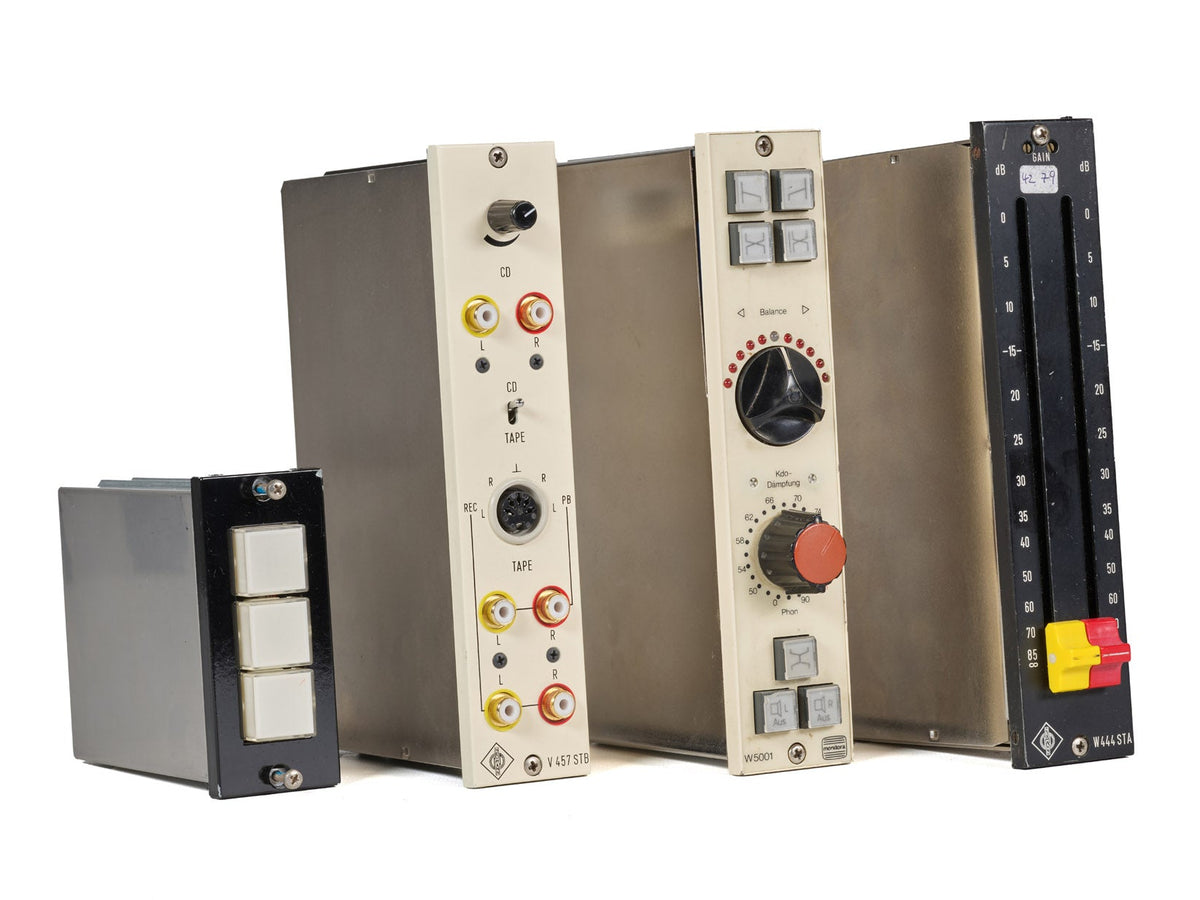

The one module that never existed.

The historic broadcast modules were designed for consoles built around buses and central routing. A local input selector in B1 format was never part of that world.

So this one had to be made.

Three inputs. Self-latching logic. The active source is shown by an illuminated button. And because a single B1 cassette left almost no room, the electronics had to be built on two levels inside.

The smallest module in the system. And the one that made the whole thing possible.

Soul of Sound Broadcast Preamplifier

One format. Not quite one standard.

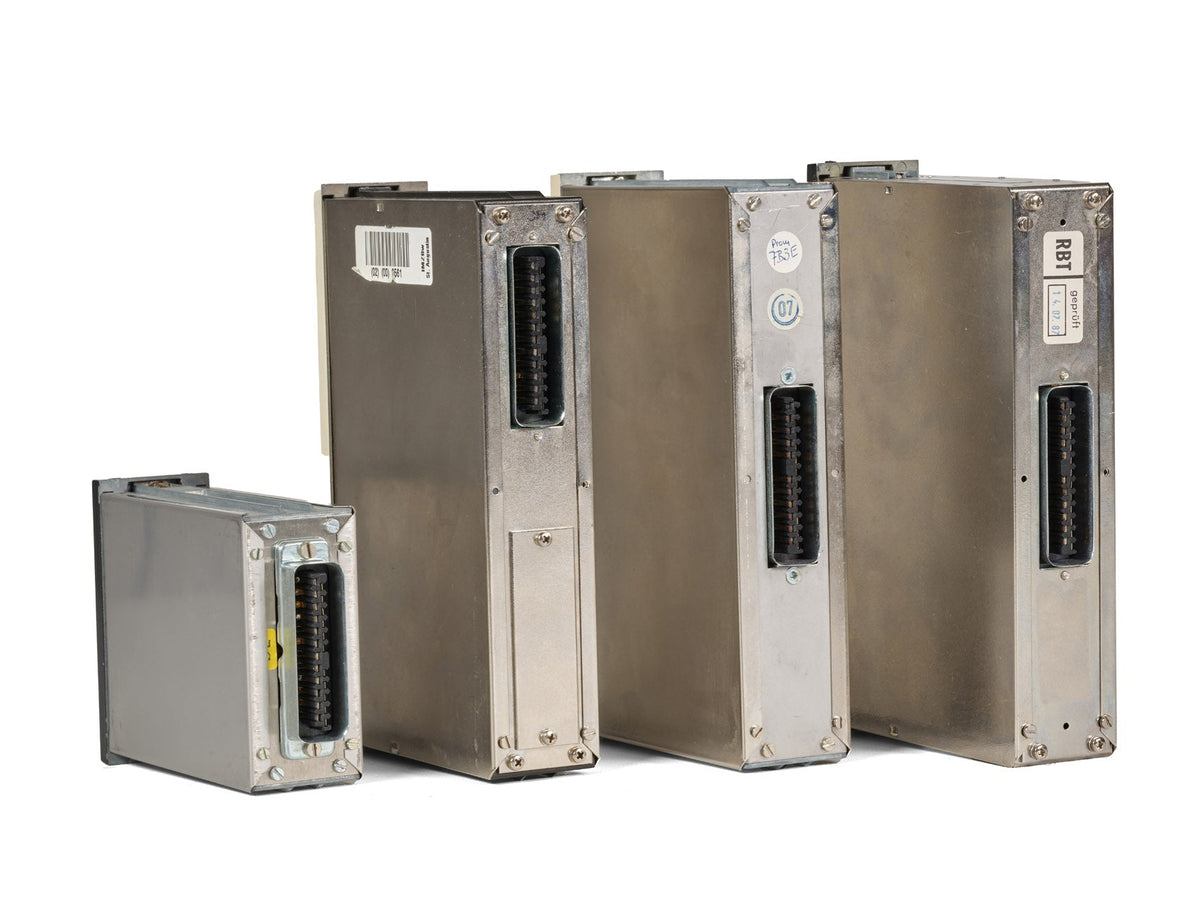

The Tuchel connector became the common interface for many Danner-format modules. But that did not make them universally interchangeable.

Connector positions varied from manufacturer to manufacturer. So did the pin assignments. A module might fit the same opening mechanically and still require completely different wiring behind it.

Neumann, BFE, RTW, Monitora and others all worked within the same physical format, but often followed their own electrical conventions.

The result was a system that could be wonderfully modular on the front — and surprisingly complicated behind it.

The sound was never the problem. The infrastructure was.

In the end, that may have been part of why the format disappeared.

Soul of Sound Broadcast Preamplifier

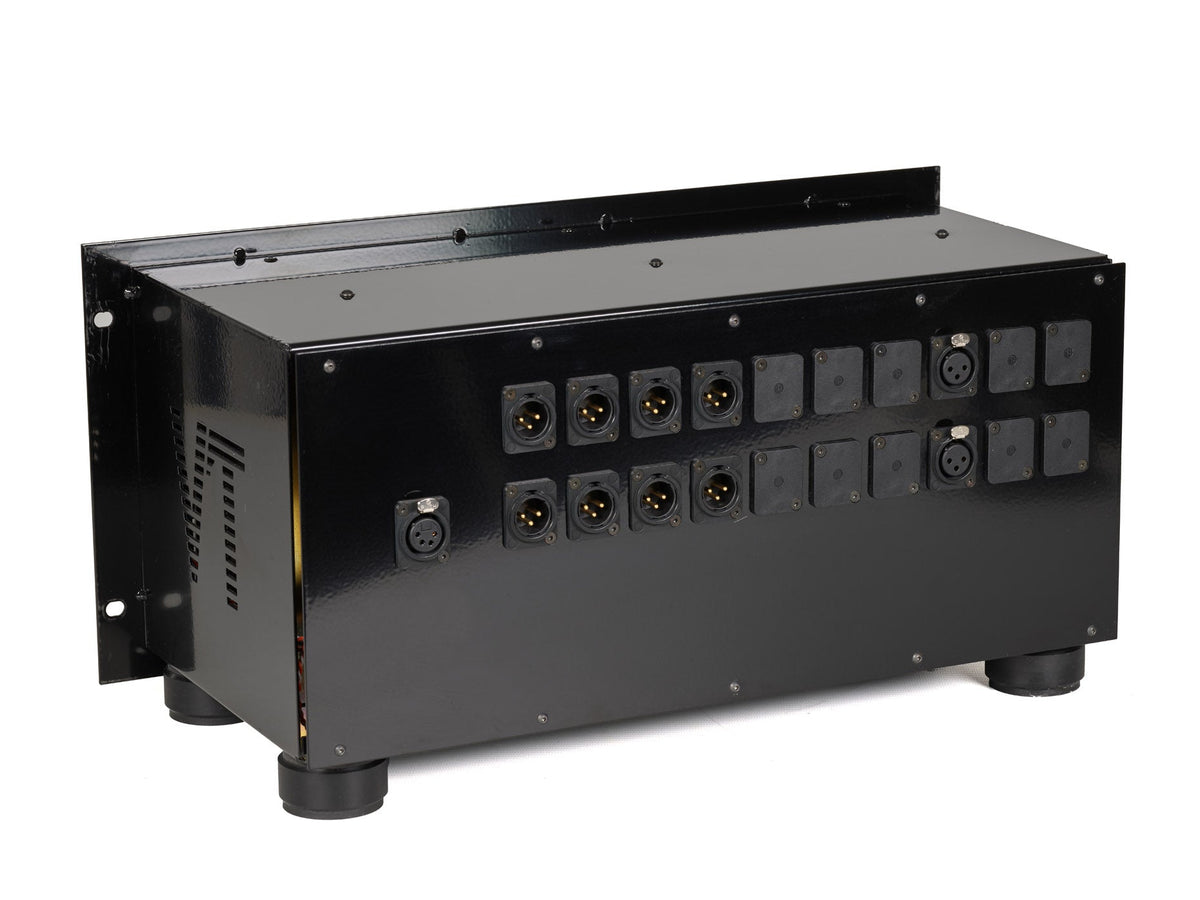

Not every connection belongs on the back.

Phono and line enter at the front, directly into the Neumann input modules. The balanced direct input sits on the rear.

Four balanced outputs leave on the left — two from each Monitora master module. 24 volts enter at the far left.

The layout follows the modules, not convention.

Soul of Sound Broadcast Preamplifier

Working tools leave traces.

These modules were built for daily studio use, not for display. Worn markings, scratches and faded surfaces are simply part of their history.

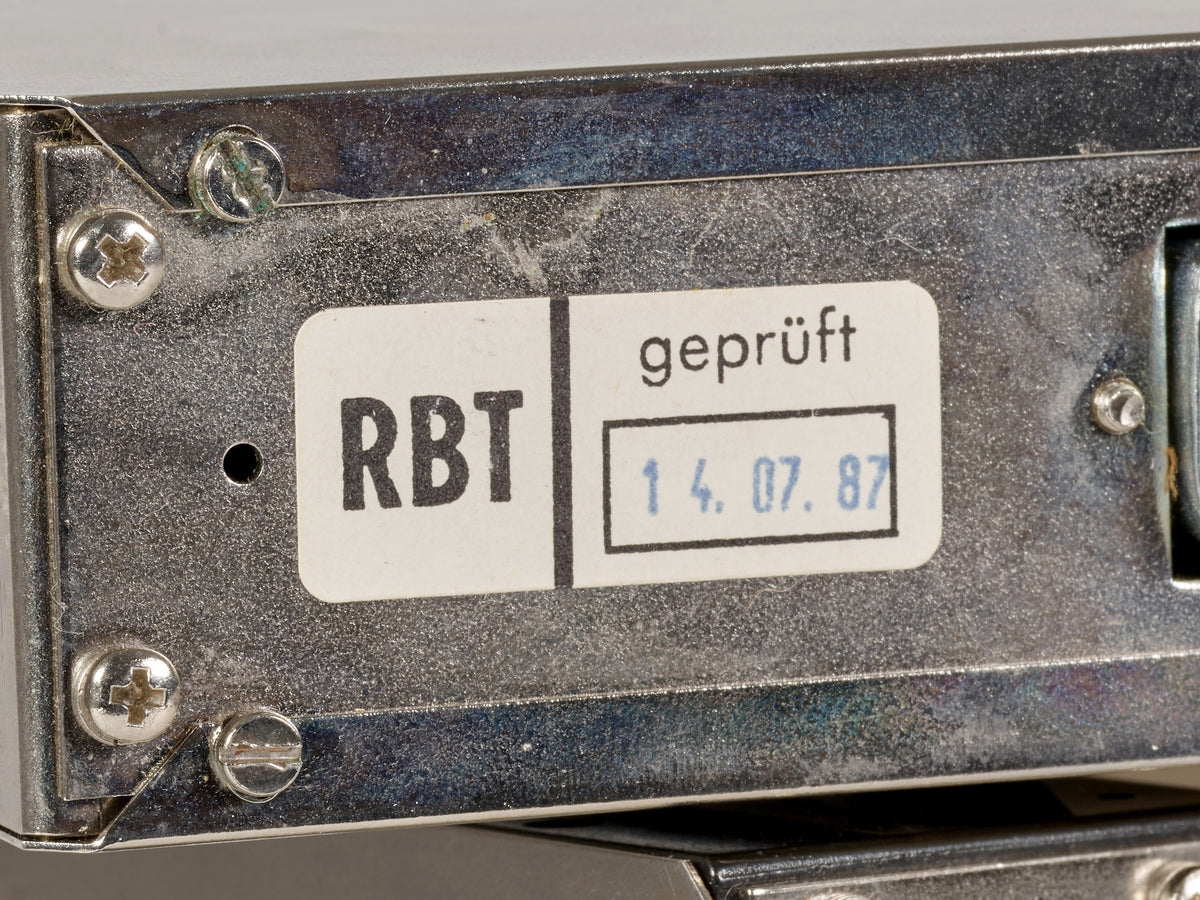

One of them still carries an RBT inspection label dated July 14, 1987.

The wear is part of the record.

Soul of Sound Broadcast Preamplifier

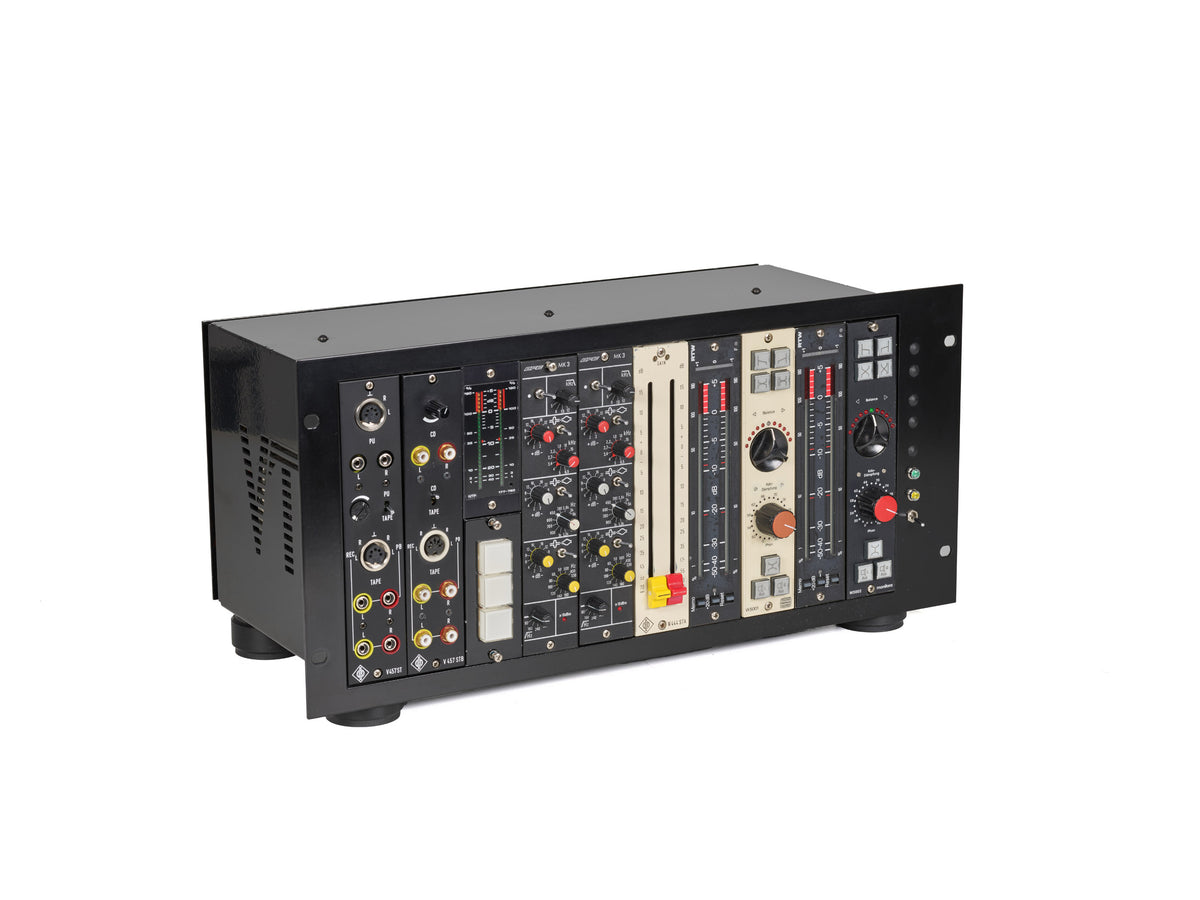

Built for work. Still working.
The Broadcast Preamplifier is not a reconstruction of a historic console. It is a new system built from old broadcast tools — with one new module where the old logic no longer fit.
