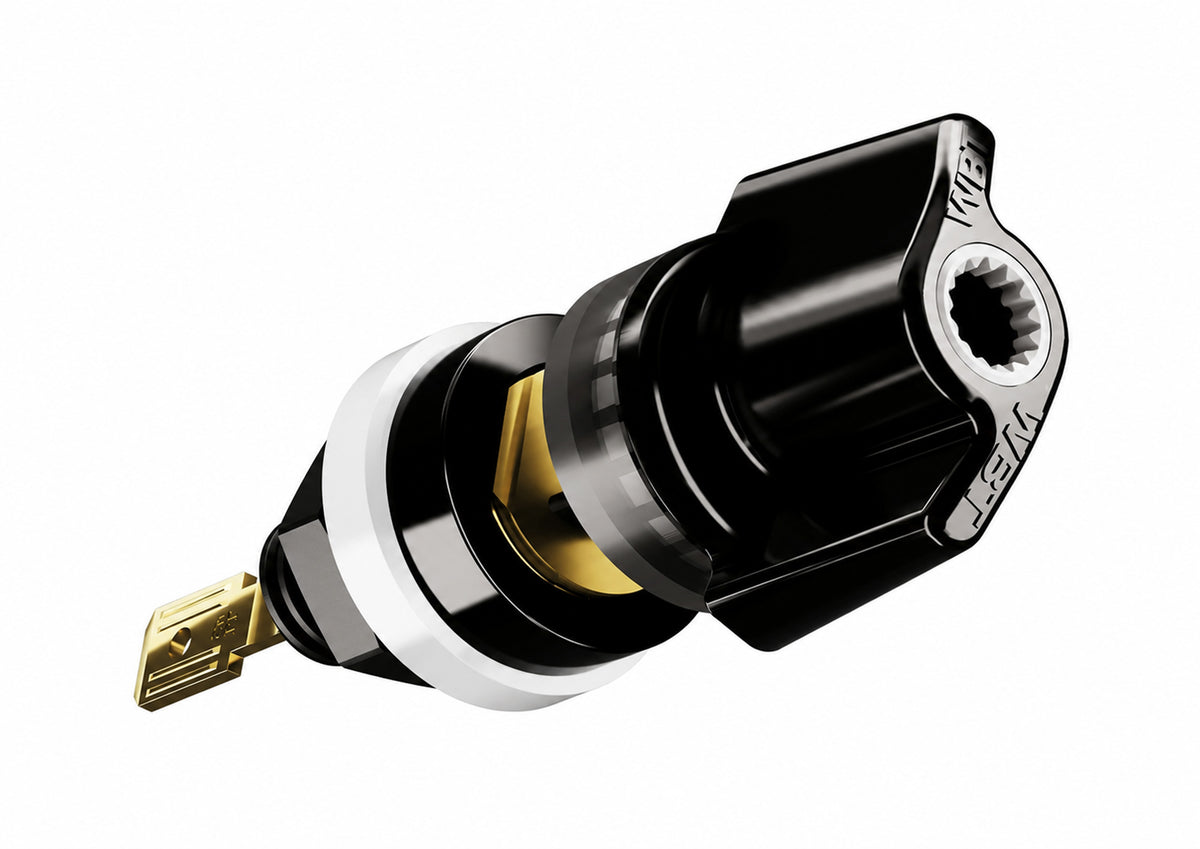

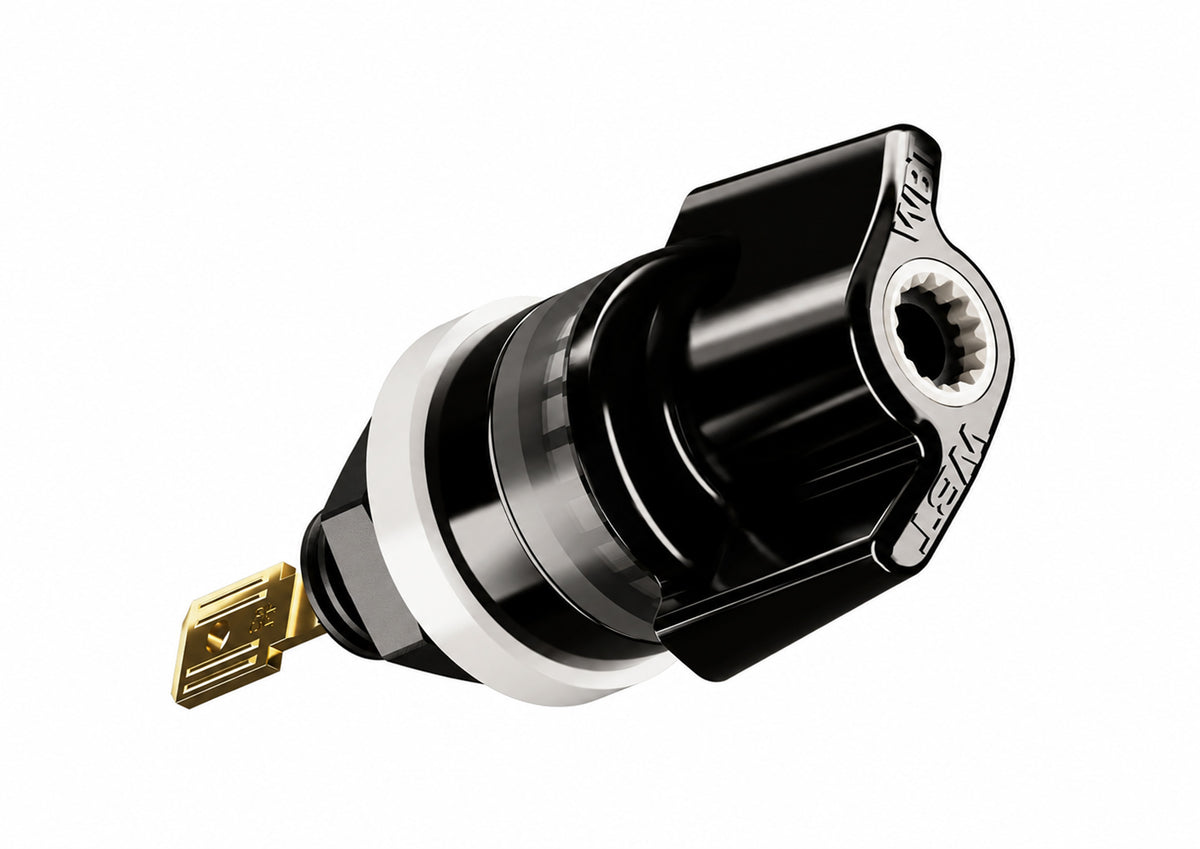

WBT-0707 Cu — nextgen™, Binding Post White (Left)

The WBT-0707 Cu is a fully insulated nextgen™ binding post for chassis mounting, designed to combine high current capability with low contact resistance and controlled mechanical behaviour.

Its one-piece signal conductor is made from pure copper and protected by WBT’s nickel-free 24k direct gold plating with PlasmaProtect™. The construction incorporates torque indication, locking contact pressure and dedicated vibration-damping materials for both electrical and mechanical stability.

Specifications

• Pure copper signal conductor
• 24k nickel-free direct gold plating with PlasmaProtect™
• Fully insulated construction
• Torque indication and locking contact-pressure mechanism
• Electrical and mechanical vibration damping
• Continuous current: ≥ 30 A
• Peak current: ≥ 200 A
• Contact resistance: < 0.1 mΩ
• Accepts 4 mm banana plugs
• Accepts spade lugs and bare cable ends
• Internal solder connection for cables up to 4 mm² / 11 AWG
• Internal 6.3 mm flat-tab connection
• Chassis mounting
• Made in Germany

Sold individually.
