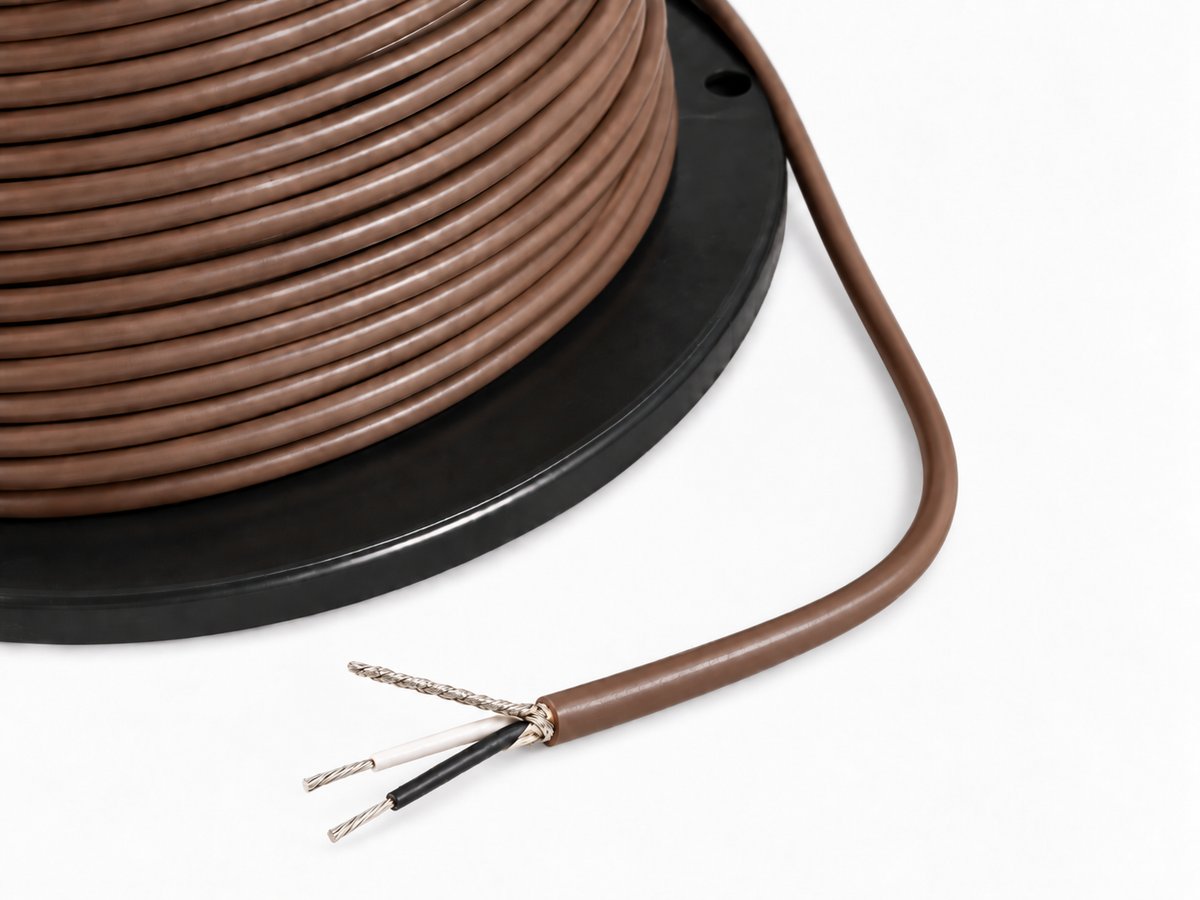

Belden 8402 — Two-Conductor Microphone Cable

Belden 8402 is a classic two-conductor shielded audio cable originally designed for rugged microphone and balanced analogue audio applications.

Two flexible 20 AWG stranded tinned-copper conductors are insulated in EPDM and surrounded by a tinned-copper braided shield with 85% coverage. Rayon braid, cotton wrapping and the brown CSPE outer jacket give the 8402 its characteristic construction and robust mechanical behaviour.

Specifications

• 2 × 20 AWG stranded tinned-copper conductors
• 26 × 34 conductor stranding
• White and black EPDM conductor insulation
• Tinned-copper braided shield, 85% coverage
• Rayon braid and cotton wrap
• Brown CSPE outer jacket
• Nominal outer diameter: 6.68 mm
• Suitable for balanced analogue audio and microphone applications

Genuine Belden 8402, cut to length from an original 1000 ft / 304.8 m Belden factory reel. Made in USA.

Sold by the metre. Quantity 1 = 1 metre. Multiple metres are supplied in one continuous length whenever possible.

Sold by the metre.
Multiple metres are supplied as one continuous length whenever possible.
