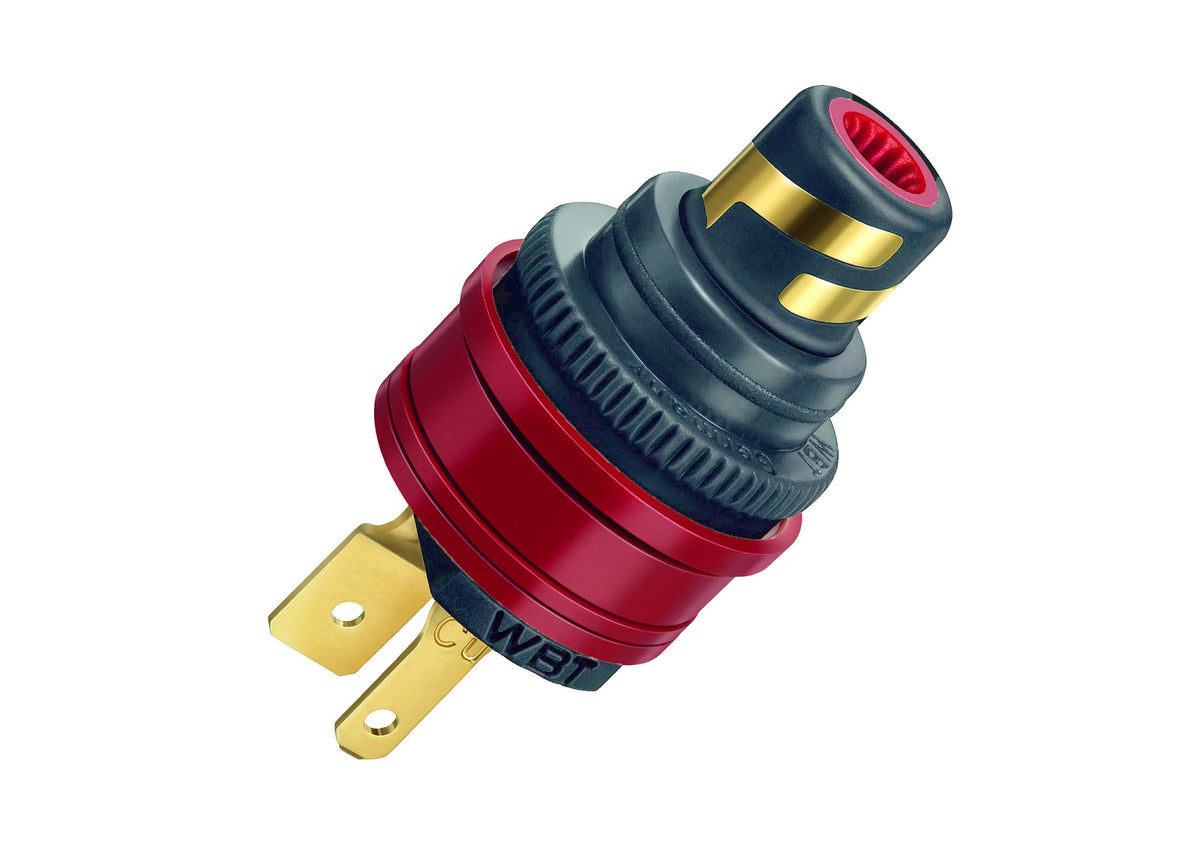

WBT-0210 Cu — nextgen™, RCA Socket Red (Right)

The WBT-0210 Cu is a chassis-mount RCA socket built around WBT’s nextgen™ low-mass contact concept. High-purity copper signal conductors and a carefully controlled contact geometry are designed for reliable, low-resistance signal transmission.

The inner contact uses a spring-loaded tulip design, while the outer contact employs WBT’s double-wave geometry for consistent contact pressure. With a typical 75-ohm characteristic impedance and bandwidth up to 1 GHz, the socket is suitable for both analogue and digital RCA connections.

Specifications

• High-purity copper signal conductors
• Nickel-free gold-plated contacts
• 75 Ω characteristic impedance (typ.)
• Bandwidth up to 1 GHz
• Spring-loaded tulip inner contact
• Double-wave outer contact
• Chassis mounting
• Solder connection
• 12 mm mounting hole
• Insulating mounting hardware included
• Made in Germany

Sold individually.
